VH Special Features Screenshots

In addition to Visual Hydraulic's advanced modeling capabilities, many special features are offered that allow the designer to analyze a variety of unique hydraulic scenarios.

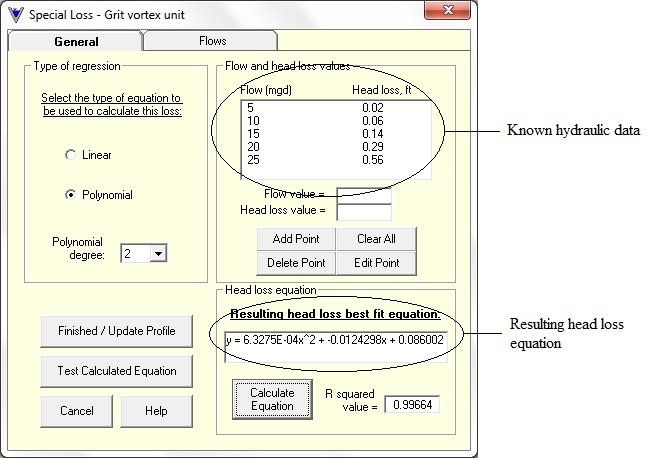

Special loss feature
Many hydraulic features don't have standard equations or methodologies to effectively predict their hydraulic behavior.  Specialized equipment (grit units, unique fittings and valves, advanced treatment technologies, etc) are common in treatment plant applications.  Hydraulic data is usually available for specialized equipment from their vendors.  This data can be imported into Visual Hydraulics and hydraulic equations can be generated for these unique features:
Visual Hydraulics software

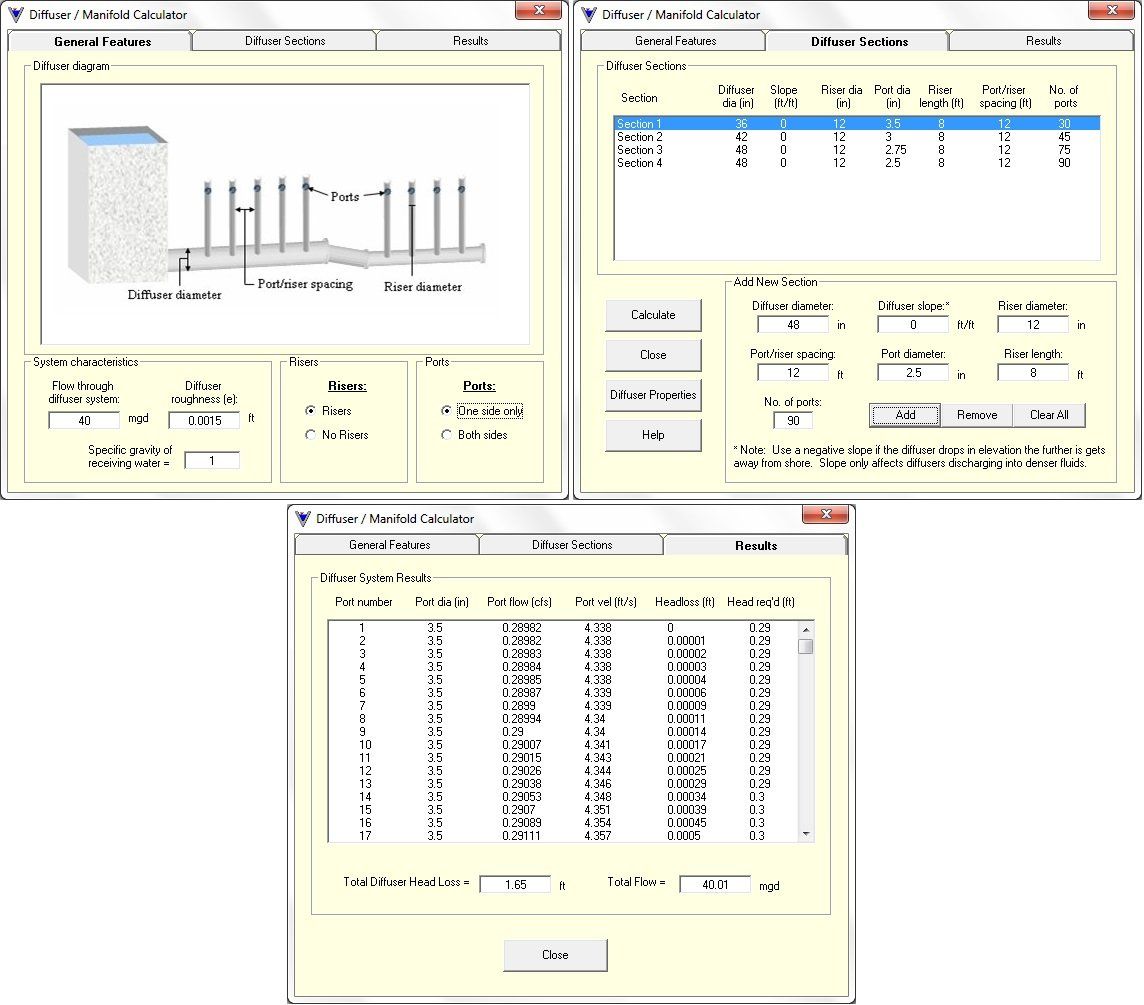

Manifold/Diffuser Tool
Manifolds and diffusers are often found in treatment plants where the flow is to be distributed over a wide area.  Common examples are ocean outfalls (diffusers) and trickling filter distributors.  The hydraulic analysis of multiple discharge distributors is one of the more unique modeling problems facing designers.  The entire system must be designed so that the flow is distributed among the discharge points as evenly as possible, all while maintaining a reasonable head loss for the entire system.  Visual Hydraulic's manifold/diffuser tool can perform these calculations for complex discharge systems in a matter of seconds.  Simply specify the characteristics of the diffuser, discharge points, and flow - and check the results.
Visual Hydraulics software
